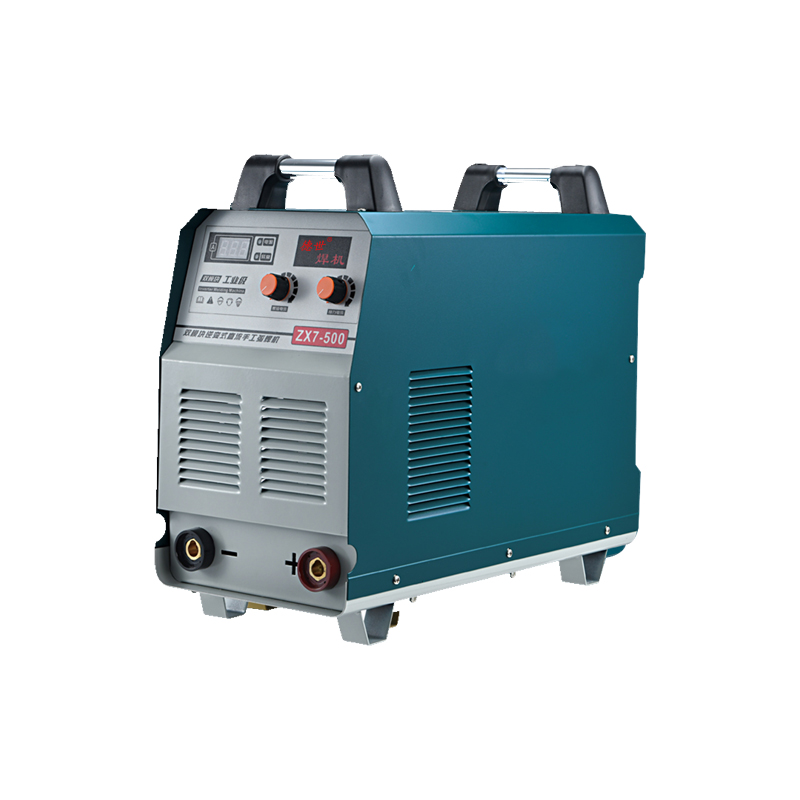

ZX7-500
-
Input rated voltage:
380V
-
Duty cycle:
60%
-
Rated frequency:
50/60Hz
-
Power factor:
0.73
-
Input power:
35
-
Efficiency:
100%
-
Input Current:
40-500
-
Enclosure class:
IP21S
-
Output voltage:
67
-
Dimensions:
33.1x15x30cm
-
Insulation class:
F
-
Weight:
22Kg

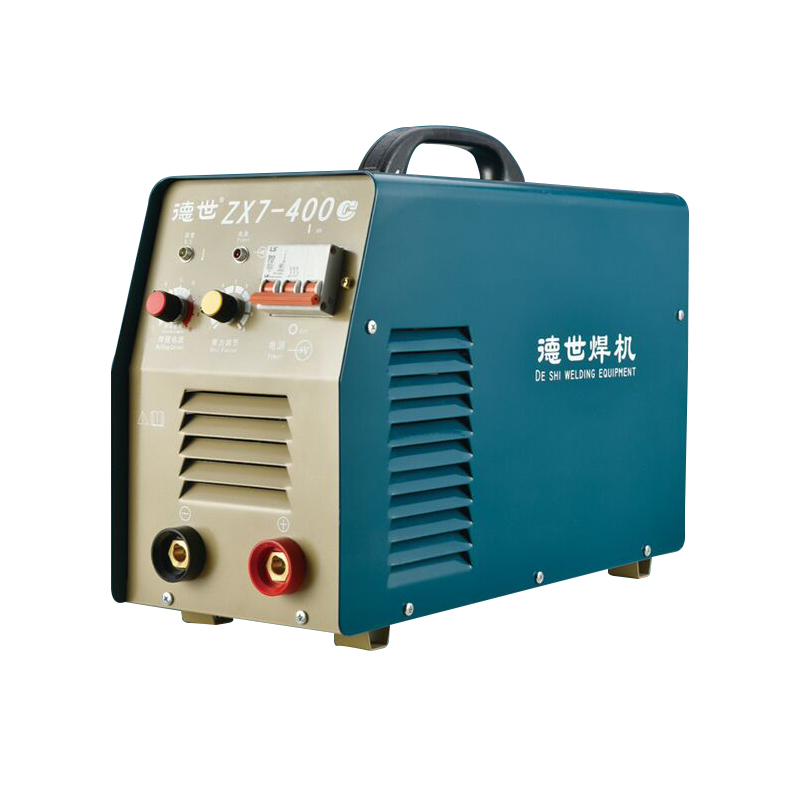

ZX7-400C
-
Input rated voltage:
380V
-
Duty cycle:
35%
-
Rated frequency:
50/60Hz
-
Power factor:
>0.93
-
Input power:
18
-
Efficiency:
80%
-
Input Current:
40-400
-
Enclosure class:
IP21S
-
Output voltage:
36
-
Dimensions:
49x21.5x36.5cm
-
Insulation class:
F
-
Weight:
14.1Kg

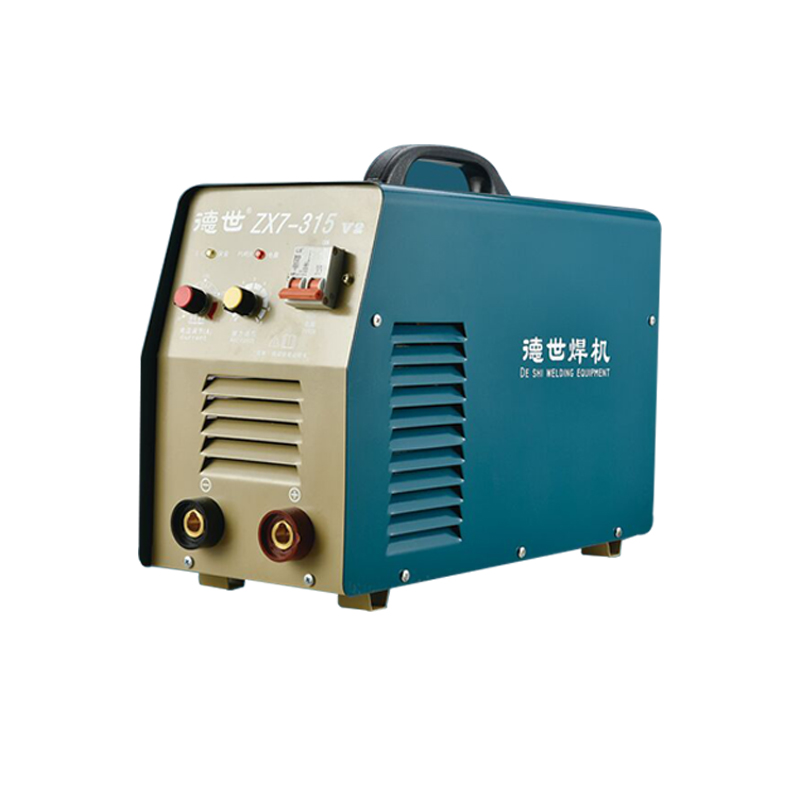

ZX7-315V2
-
Input rated voltage:
200V-380V
-
Duty cycle:
60%
-
Rated frequency:
50/60Hz
-
Power factor:
0.73
-
Input power:
16.5
-
Efficiency:
80%
-
Input Current:
30-350
-
Enclosure class:
IP21S
-
Output voltage:
32.6
-
Dimensions:
49x21.5x36.5cm
-
Insulation class:
F
-
Weight:
14.1Kg

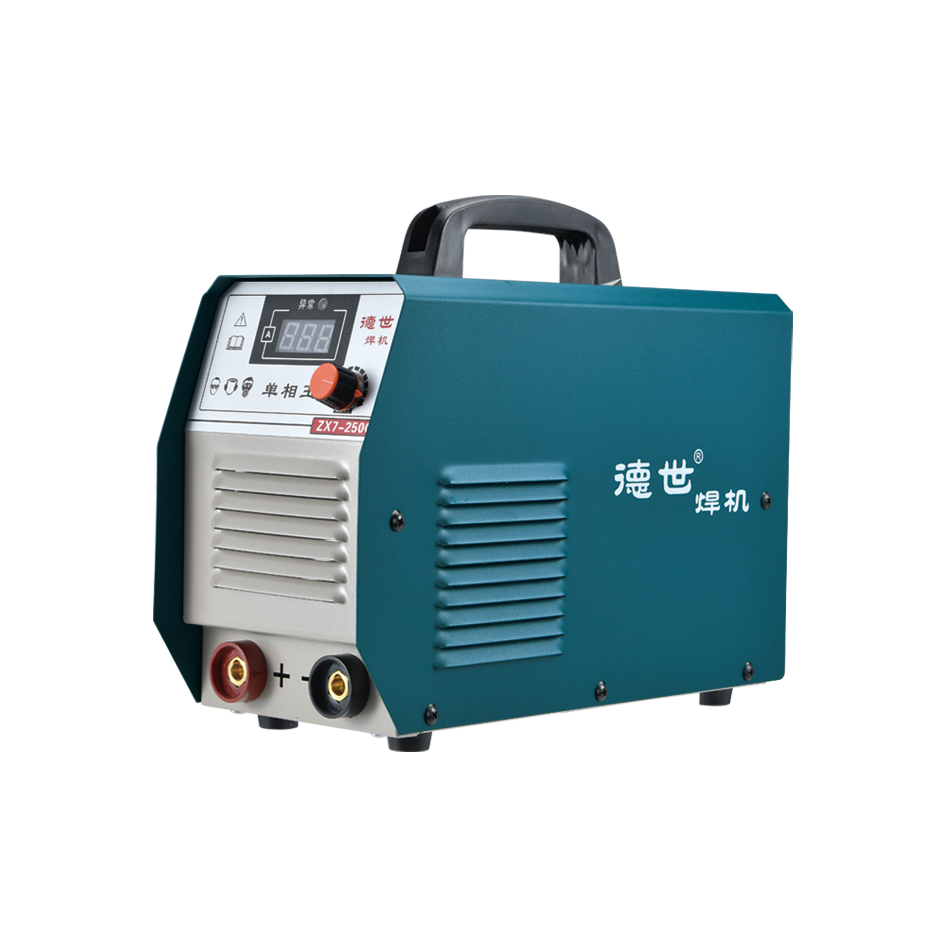

ZX7-250G
-
Input rated voltage:
220V
-
Duty cycle:
25%
-
Rated frequency:
50/60Hz
-
Power factor:
0.73
-
Input power:
8.9
-
Efficiency:
80%
-
Input Current:
40-250
-
Enclosure class:
IP21S
-
Output voltage:
21.6-30
-
Dimensions:
33.1x15x30cm
-
Insulation class:
F
-
Weight:
5.2Kg

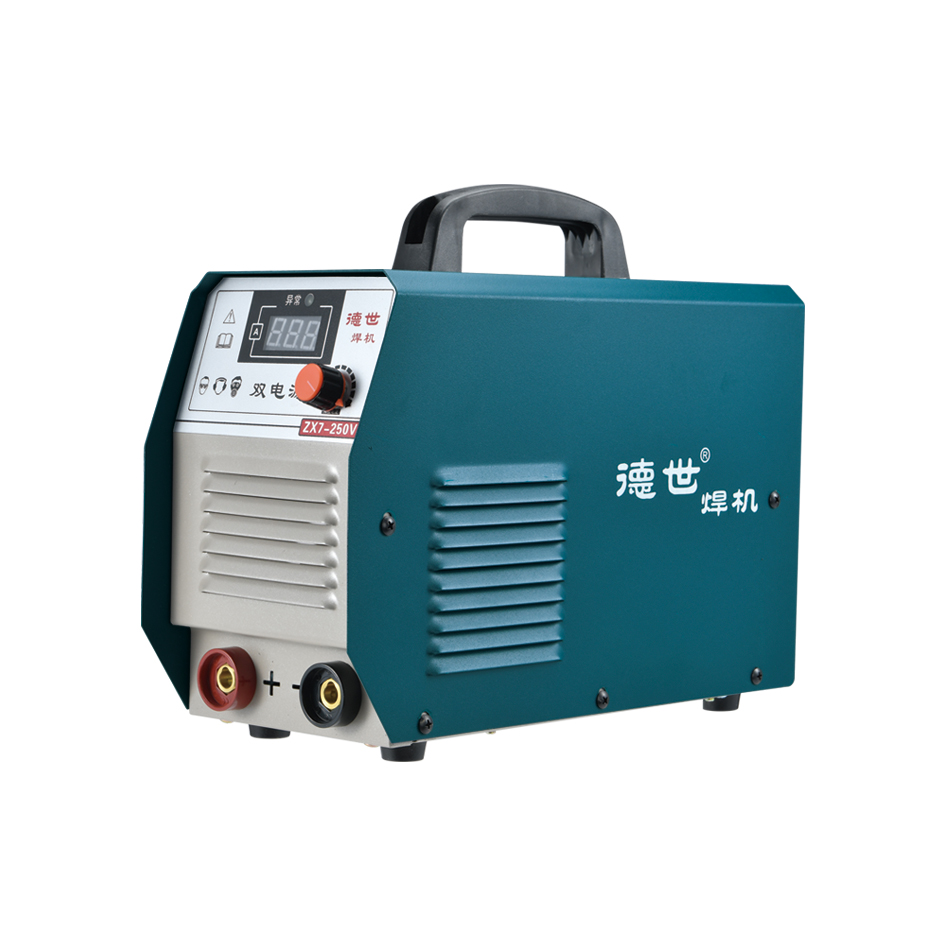

ZX7-250SV
-
Input rated voltage:
120V-560V
-
Duty cycle:
60%
-
Rated frequency:
50/60Hz
-
Power factor:
0.73
-
Input power:
58/33.8
-
Efficiency:
80%
-
Input Current:
20-250
-
Enclosure class:
IP21S
-
Output voltage:
30
-
Dimensions:
33.1x15x24cm
-
Insulation class:
F
-
Weight:
5.7Kg
